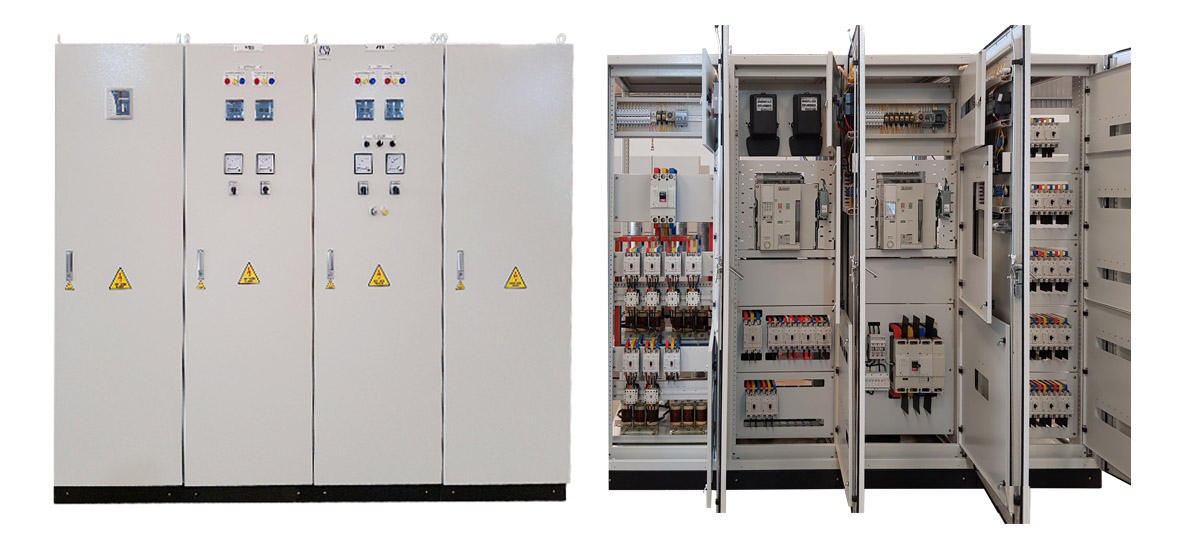

ATS switchboard

ATS switchboard

Standard IEC 61439 - 1,2
Rated input voltage (VAC) 380/400 VAC
Rated output voltage (VAC) 220 VAC, 380 VAC
Rated current (A) 25÷6300A
Cutting current (kA) 25÷100kA
Frequency (Hz) 50/60Hz
Ingress protection IP54 (Outdoor)
IP42 (Indoor)
Form  1, 2a, 2b, 3a, 3b, 4a, 4b
Number of layers 2
Finished surface Powder coating
Materrial Sheet metal 1.2÷2.0mm
Product information

ATS switchboards are used in areas where the load requires constant power supply, to power the load when there is a problem on the power side, usually using backup power as a generator. In this case, ATS cabinets automatically switch the power supply from the grid to the backup source to supply power back to the operating load source.

The cabinet is galvanized or powder coated with different levels of protection, some other specifications of ATS electrical cabinets depend on the needs of customers.

Main functions of ATS

ATS (Automatic Transfer Switches) is automatic power transfer. Switch to using a backup power source as a generator when the mains power is lost. In addition, ATS switchboards often have a protection function when mains electricity and generator power are damaged such as phase loss, neutral loss, over voltage, voltage drop, etc.

ATS switchboard is used in industrial areas such as factories, industrial workshops, commercial centers, office buildings, apartments, hospitals, ports, airports ... where there are loads that require power supply continuous, or areas usually unexpected power outages.
